Priority Encoder

Definition

A priority encoder is an combinational circuit that implements the priority function.It is often used in scheduling interrupt requests.If two or more interrupts arrive at the same time, the interrupt having the highest priority will take precedence and get serviced first.

Block Diagram

General Equation

•  A 4 x 2 priority encoder has 4 inputs & 2 outputs (2² = 4).
•   In general, an n x m priority encoder has n inputs and m (2^m = n )outputs.

Truth Table

Inputs				Outputs
D3	D2	D1	D0	Y1	Y0	V
0	0	0	0	x	x	0
0	0	0	1	0	0	1
0	0	1	x	0	1	1
0	1	x	x	1	0	1
1	x	x	x	1	1	1

Explanation

The above Truth Table represents a 4 x 2 priority encoder.

Since the priority encoder deals with priority signals assigned to input lines, only  one input is in ON (Binary - 1) state at any point of time and the other inputs are in OFF (Binary - 0) state. So only 5 (Five) combinations of inputs are possible(including invalid inputs) as shown in Truth Table.

Here, D₀ is assumed as Low Priority Input and D₃ is assumed as High Priority Input. There is Valid Output (V) that designates the validity of the servicing the input signal. If V=0, the inputs are invalid and if V=1, the inputs are valid.

When the truth values of all the inputs (D₀ through D₁) are '0', the outputs are not determined. So, we mark a  'x' (don't care) value.

When D₀ = 1,  the outputs Y₀ & Y₁ are '0' - means that it is a low priority input  compared to D1,D2 &D3.

When D₁ = 1, the output Y₀=1 & Y₁ =0 - means that its priority > D0 and less than D2 & D3.

When D₂ = 1, the output Y₀=0 & Y₁ =1 - meaning that its priority > D1,D0 and less than  D3.
When D₃  = 1, the outputs Y₀=1 & Y₁=1  - meaning that it is a high priority input compared to D0, D2 &D3.

Design of Logic Circuit for 4 x 2 priority encoder

The Logic Circuit for 4X2 Priority encoder can be done using Karnaugh Map (K-Map).

Since there are two outputs (excluding V output), two 4 x 4 K-Maps are possible( one for the output Y₀ & the second for the output Y₁).

K-Map for output Y1

K-Map Explanation for output Y₁

Inputs for D3D2D1D0	Entry in K-Map for output Y1	Reason
0000	x	No output is generated when all inputs are 0
0001	0	Output 0 is generated for input D0 – No need to consider the truth values of other inputs.
0011	0	Output 0 is generated for input D1 – No need to consider the truth values of other inputs.
0010	0	Output 0 is generated for input D1 – No need to consider the truth values of other inputs.
0100	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
0101	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
0111	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
0110	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
1100	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1101	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1111	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1110	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1000	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1001	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1011	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1010	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.

Expression for O1 derived from K-Map

 For Minterms showing in (i) : O₁ = D₃

 For Minterms showing in (ii) : O₁ = D₂

Final Output for O₁ = D₂ + D₃ --------  (A)

K-Map for output O0

K-Map Explanation for output O0

Inputs for D3D2D1D0	Entry in K-Map for output O0	Reason
0000	x	No output is generated when all inputs are 0
0001	0	Output 0 is generated for input D0 – No need to consider the truth values of other inputs.
0011	0	Output 0 is generated for input D1 – No need to consider the truth values of other inputs.
0010	1	Output 1 is generated for input D1 – No need to consider the truth values of other inputs.
0100	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
0101	0	Output 0 is generated for input D2 – No need to consider the truth values of other inputs.
0111	0	Output 0 is generated for input D2 – No need to consider the truth values of other inputs.
0110	0	Output 0 is generated for input D2 – No need to consider the truth values of other inputs.
1100	1	Output 1 is generated for input D2 – No need to consider the truth values of other inputs.
1101	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1111	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1110	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1000	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1001	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1011	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.
1010	1	Output 1 is generated for input D3 – No need to consider the truth values of other inputs.

Expression for O0 derived from K-Map

 For Minterms showing in (i) : O₀ = D₁D₂

 For Minterms showing in (ii) : O₁ = D₃

Final Output for O₀ = D₃ + D₁D₂ --------  (B)

Circuit Diagram

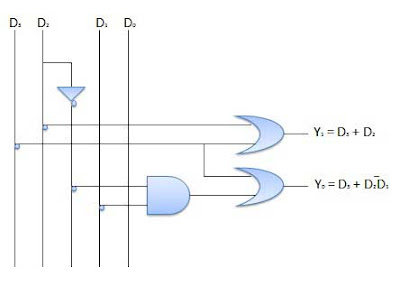

Using (A) & (B) we can design the Priority Encoder circuit using AND gates and OR gates.
